VRF system in Bolivia starts up successfully made by DEKON

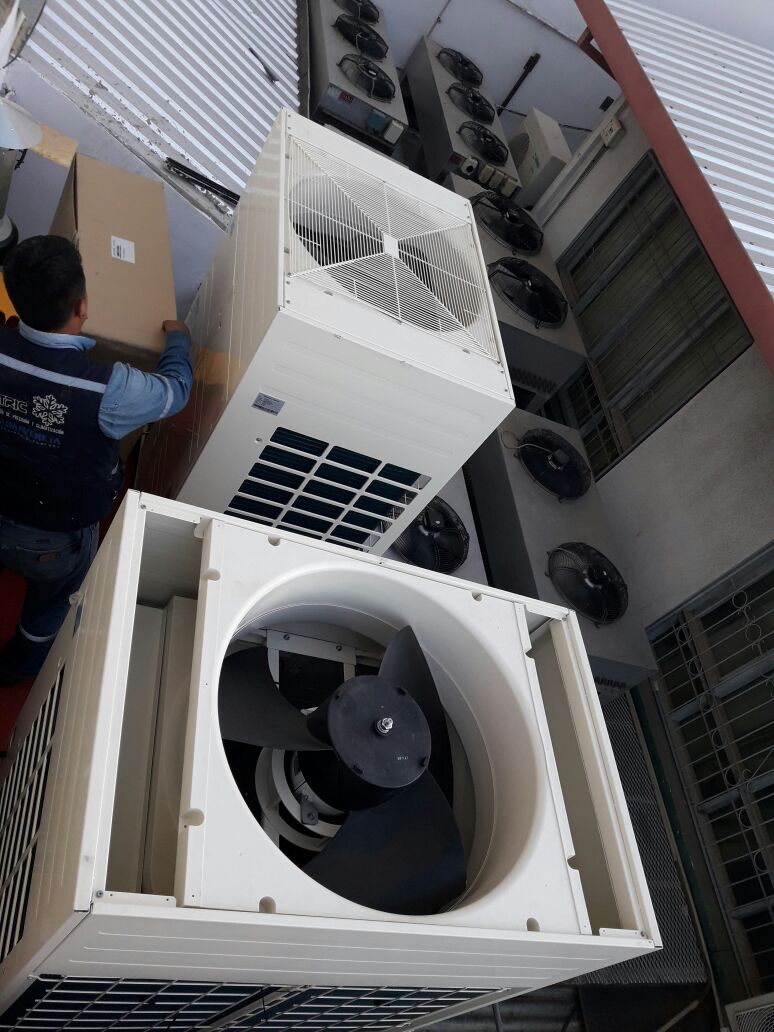

DEKON VRF SYSTEM successfully starts up in Bolivia

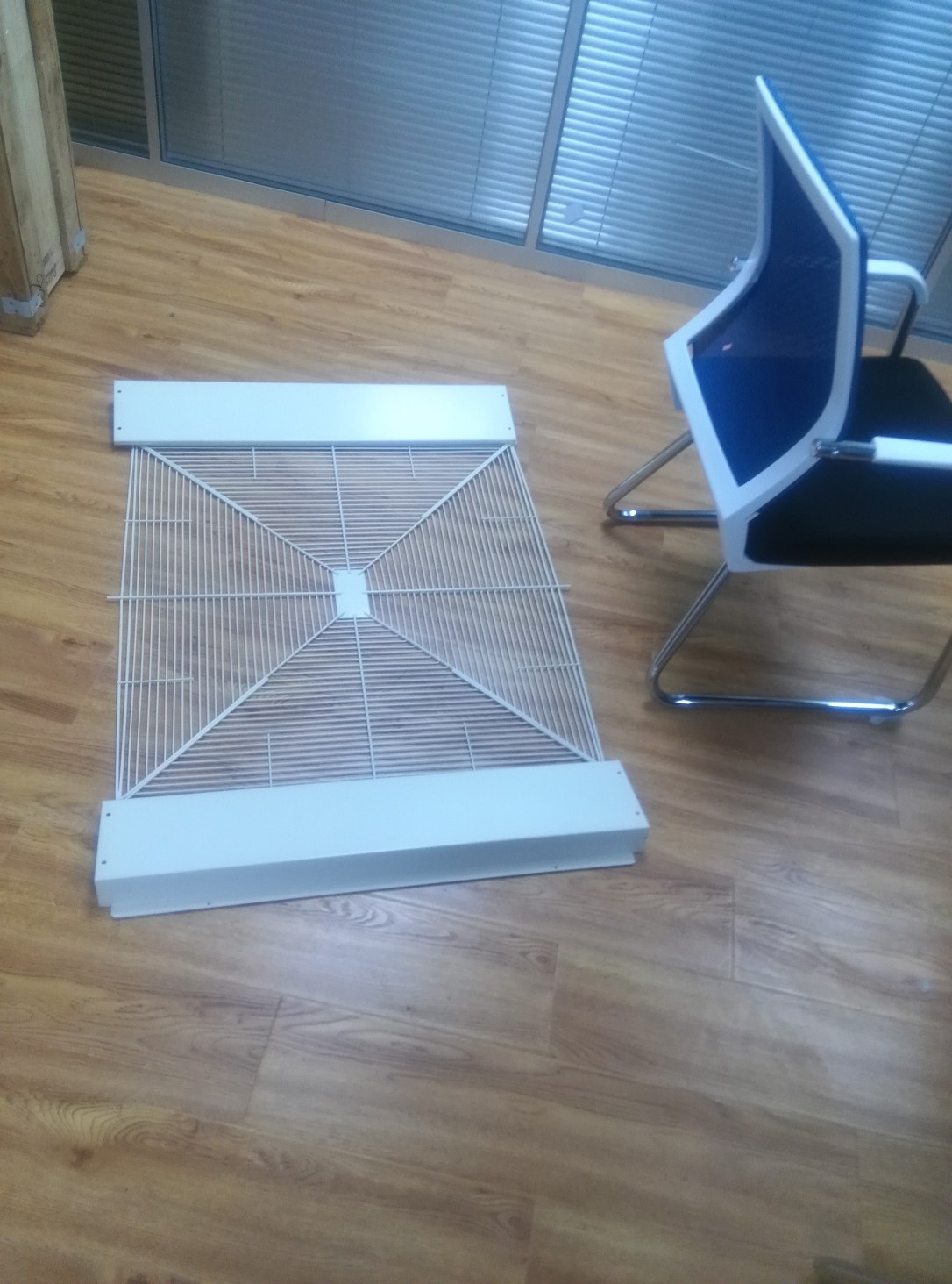

Though during the air delivery, we faced missing of metal parts, it is 100% caused by checking of airport transportation, but we have solved it by sending new ones to clients.

DEKON VRF SYSTEM China best factory for your project
DEKON VRF SYSTEM China best factory for your project
DEKON VRF SYSTEM China best factory for your project
DEKON VRF SYSTEM China best factory for your project

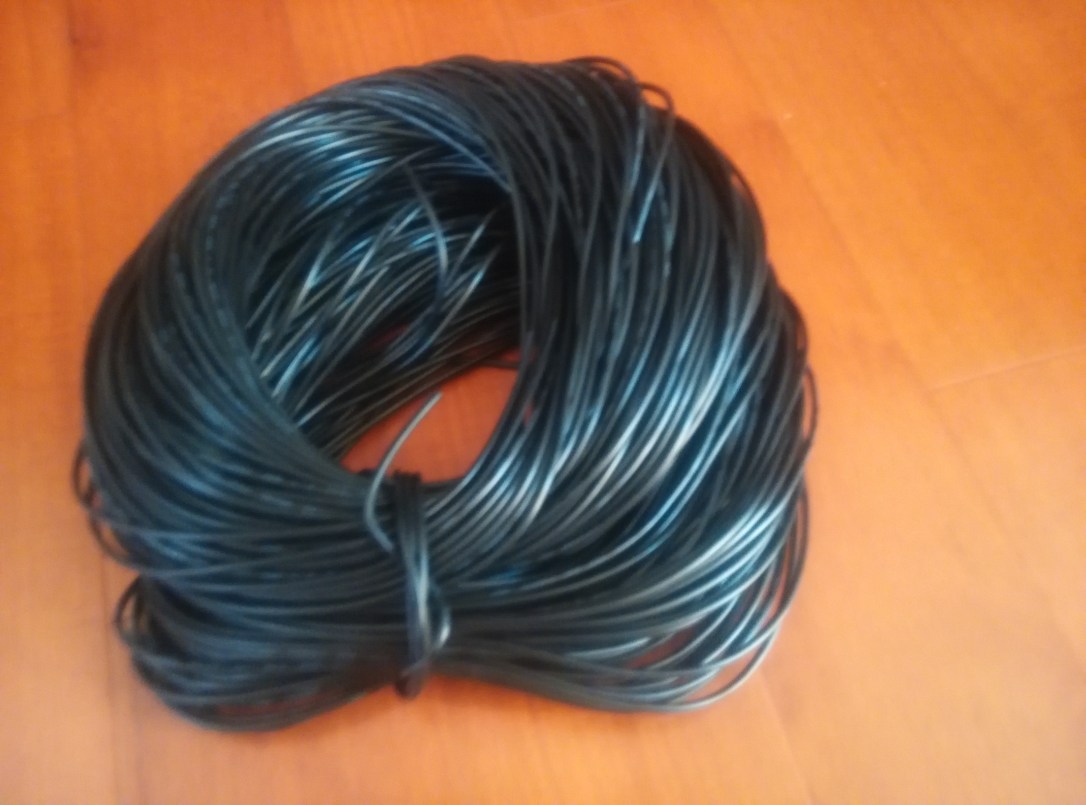

Clients request for the signal wire, we helped them to purchased in China.

DEKON VRF SYSTEM indoor and outdoor unit communication wire

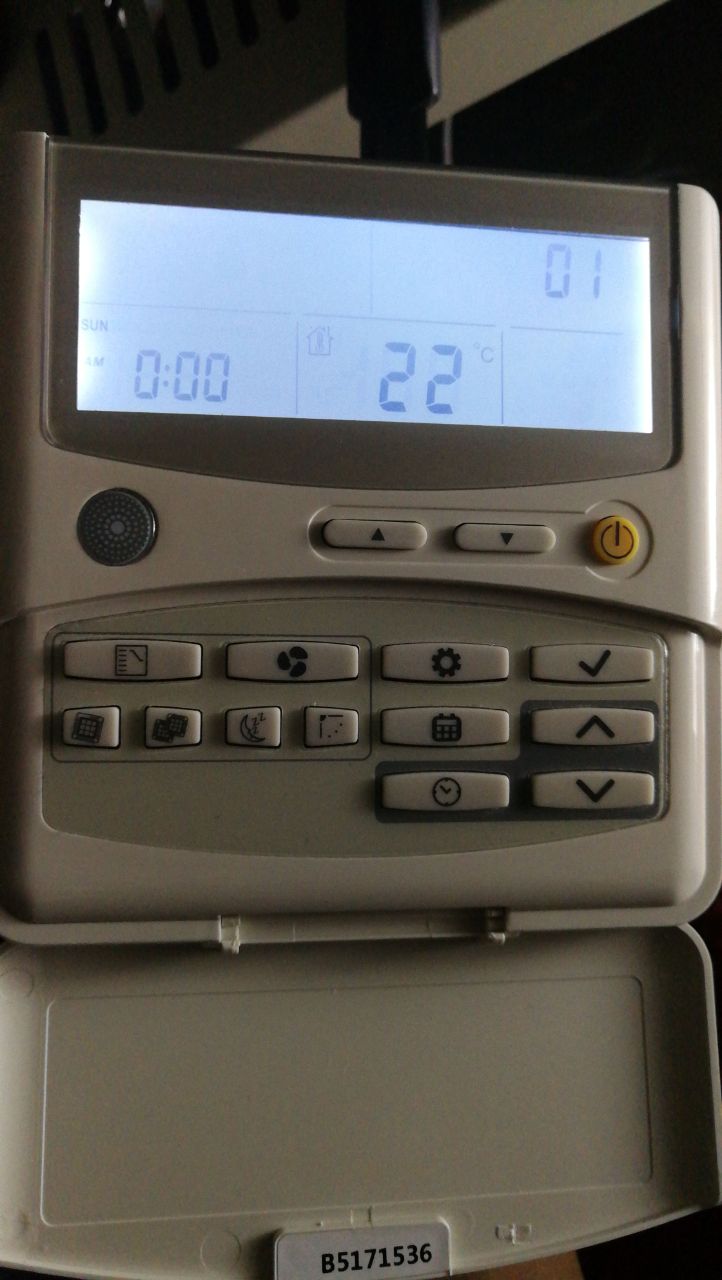

After receiving the equipment, clients request the group wired controller, we send to them, without charging money in advance, but to solve the problem first.

DEKON VRF SYSTEM GROUP CONTROLLER China VRF Professional factory
DEKON VRF SYSTEM GROUP CONTROLLER China VRF Professional factory

During the starts up of the units, clients facing some errors codes and don’t know how to solve it. We send the answers by mail to help you solve all problems:

DEKON VRF SYSTEM - China VRF Professional factory
DEKON VRF SYSTEM – China VRF Professional factory

DEKON VRF SYSTEM - China VRF Professional factory

For the group controller issue, pls check below our reply:

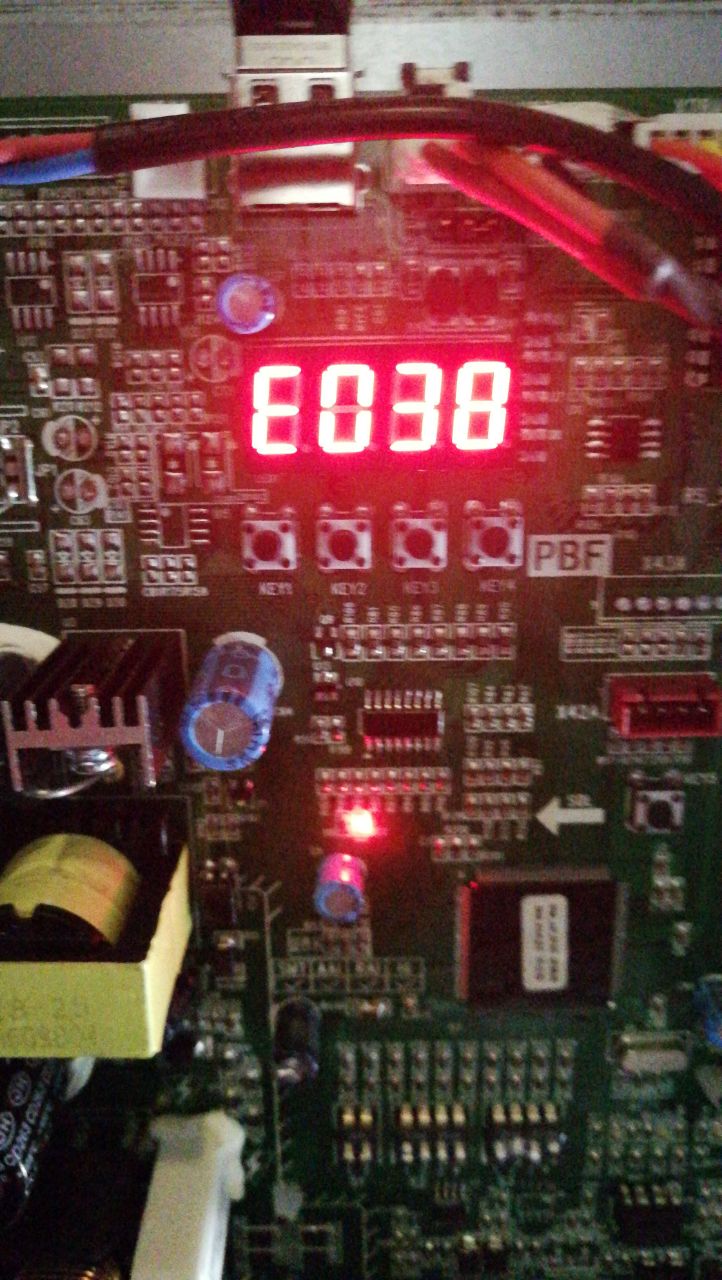

1, E038: internal and external machine communication failure.
   Please check whether the communication lines between inside and outside units in accordance with the provisions of wiring, and then set the number of indoor units (DP09), and then push down K2 / K3, to find the indoor units.

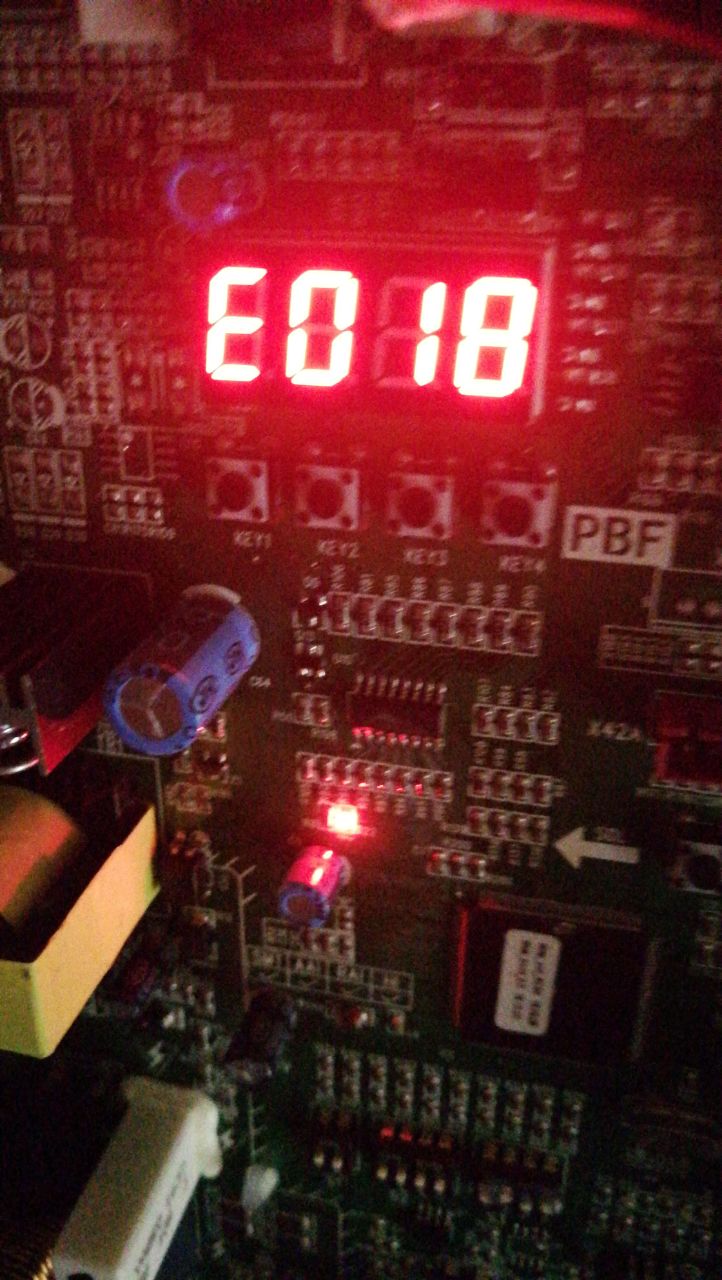

2, E018: host and slave 1 communication failure;
E019: Host and slave 2 communication faults
Host S2 Dial Code: 1010
Slave – S2 Code: 0001
Slave two S2 dial code: 0010, but also to ensure that the value of SP05 inside DP04 is SN01;

3, if there is a fault of the controller, then there will be a “clock” icon; So, the group controller is no problem.

And the problem were solved successfully.

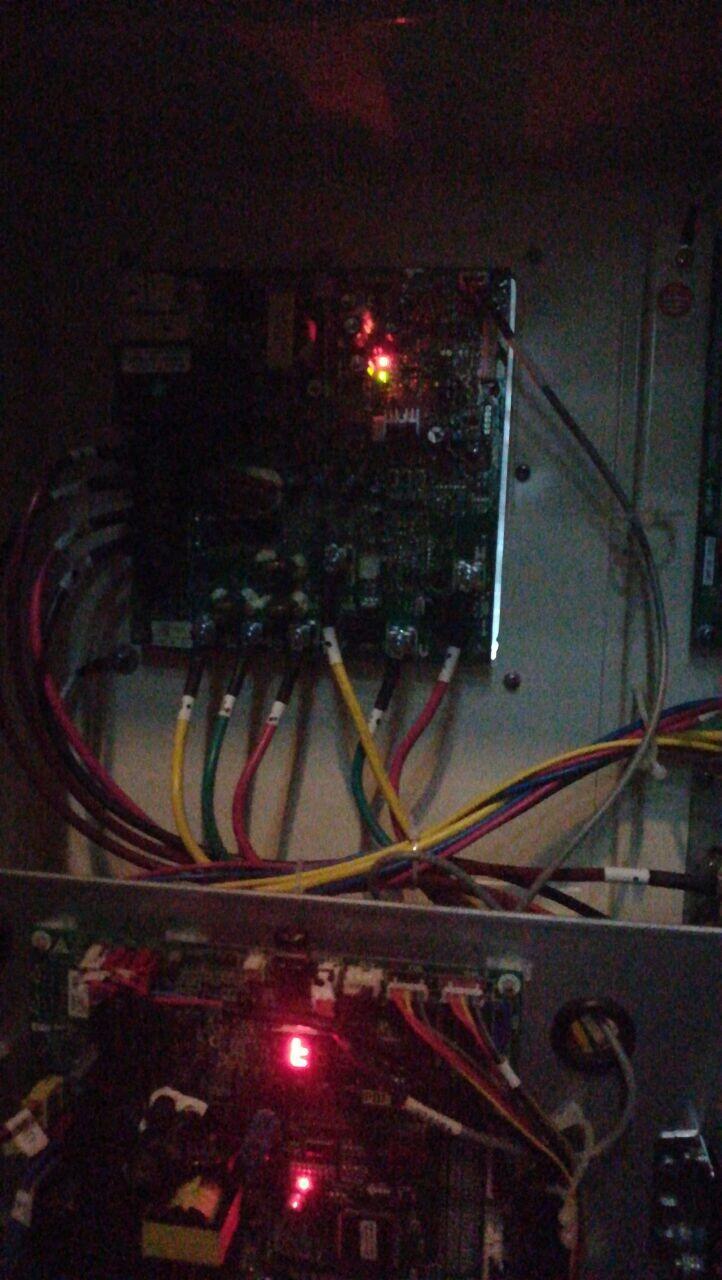

Again, clients facing another problem,can’t find out the indoor unit:DEKON VRF SYSTEM-China professional factory for VRF
We informed client to take off the disk on the PCB, and send us the info stored in Disk to us, and found two issues need to check and confirm:
1. System low pressure is only 2.3Kg, the requested minimum low pressure is 10kg.
    It means that the freon re-charging qty is not enough.
   After check the total piping line length, our engineer given our suggestion of charge
to 15kg per system, and two system can not be less then 30kg freon.
2. E020 Error, it means that the outdoor unit and indoor unit is not matching.
    And we send the video for checking if indoor units can be found in system.
At last, the system starts up successfully.

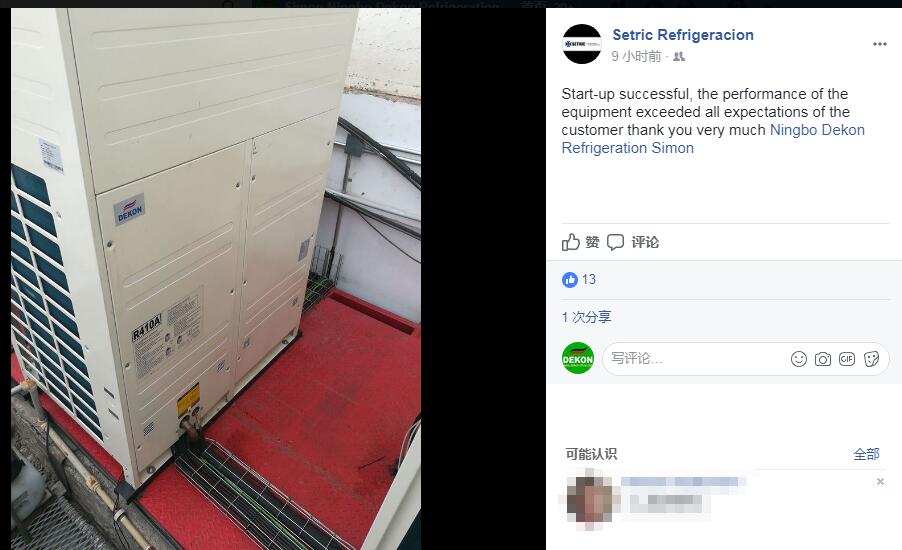

Clients facebook feedback about the VRF system installed from DEKON:

Start-up successful, the performance of the equipment exceeded all expectations of the customer thank you very much Ningbo Dekon Refrigeration Simon

DEKON VRF SYSTEM successfully starts up in Bolivia

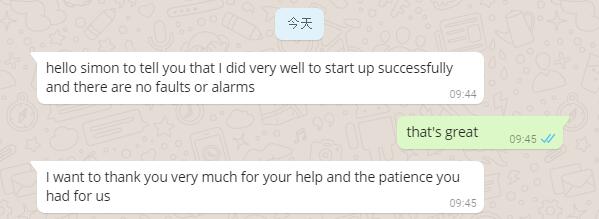

QQ截图20170913095025



For HVAC products, good quality only the basic request, good services and communications counts a lot too!

All in all, your comfort air, We Dekon care!





For more info about DEKON VRF, you can download our catalog here:



For DEKON VRF Installation instructions, pls check here:



For other products or manuals download, pls go to
